Brand Name : | Xinji |
Model Number : | Dia 13.5mm - 40mm |
Certification : | ISO, CFDA |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 300 millions pcs per year |
Delivery Time : | 30 days |

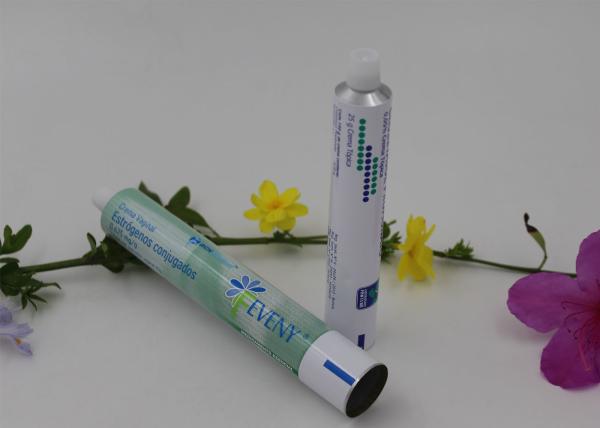

Printed Ointment Beautiful Aluminum Packaging Tubes Phototype Surface Printing for Condensed Milk
General Description
Aluminum collapsible Tube Specification sheet | |
Fill Volume | Suggested Tube Size(diameter&height) |
2-5ml | Dia11mm*H55mm, Dia13.5mm*H70mm, |
5-12ml | Dia13.5mm*H70mm, Dia16mm*H100mm, |
19-25ml | Dia19mm, 25mm, 30mm, 32mm, 38mm, the height could be designed as customer's request |
35-50ml | dia25mm |
60-80ml | dia30ml,32ml |
125-150ml | dia32ml,35ml |
150-200ml | dia35mm,40mm |
Remark: our alloy tube diameter range dia11mm to dia40mm and the height range 40mmH to 200mmH. Please be noted that the exact capacity dpending on product formulation and filling machinery. Test filling of actual product is suggested to determine the appropriate tube dimension |
Advantages:
Size & Volume | |||||
Diameter (mm) | 13.5 | 16 | 19 | 22 | 25 |
Length (mm) | 55 ↓ 100 | 55 ↓ 105 | 80 ↓ 130 | 85 ↓ 140 | 95 ↓ 160 |
Content (ml) | 4.5 ↓ 7 | 7 ↓ 12 | 14 ↓ 24 | 20 ↓ 35 | 30 ↓ 55 |
Standard Nozzle:
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle
Diameter | Dia 13.5mm-40mm |
Capacity | 5ml-300ml (0.27oz-13oz) |
Length | adjusted within the range of tube capacity (5ml to 300ml) |
Layer | mono-layer to five layers tube |
Shape | round,oval,super flat |
Tube color | white, transparent,colored |
Printing | 1-6 colors printing |
Cap | Flip top cap, screw on cap |
Usage | Cosmetic, Pharmaceutical, Health & Beauty industries |
Packaging | card board tray and carton with plastic bag inside |
![]() |
